DIY Frame Project #2

Started this winter with a oversized MTB kit from nova cycle supply....



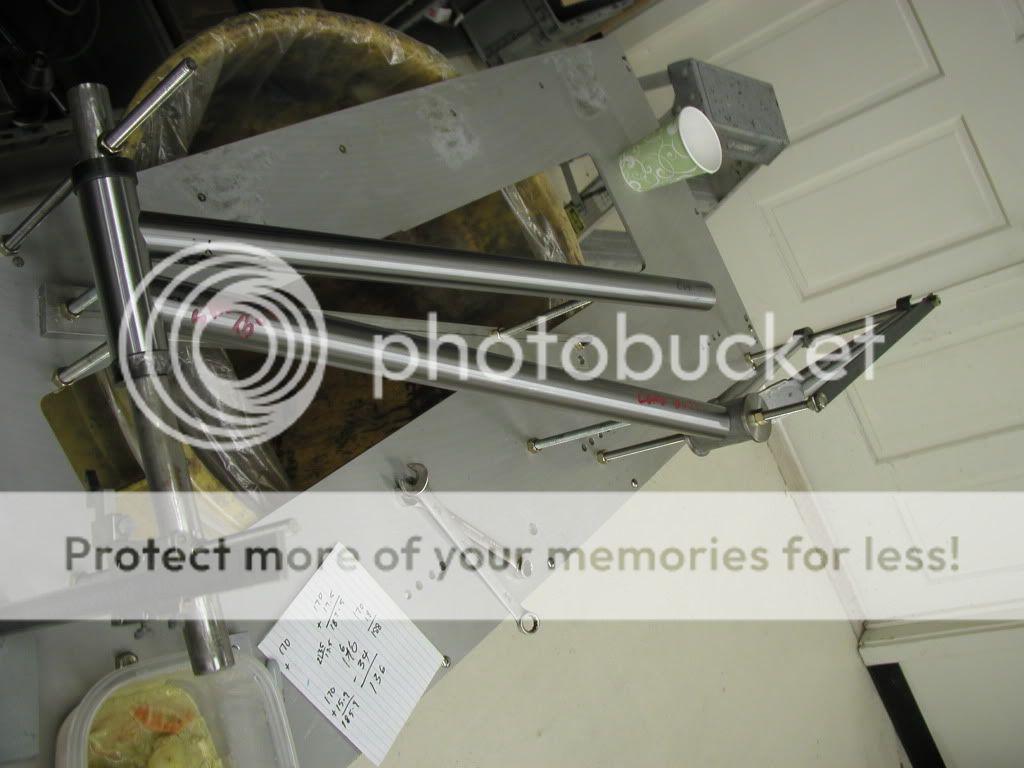

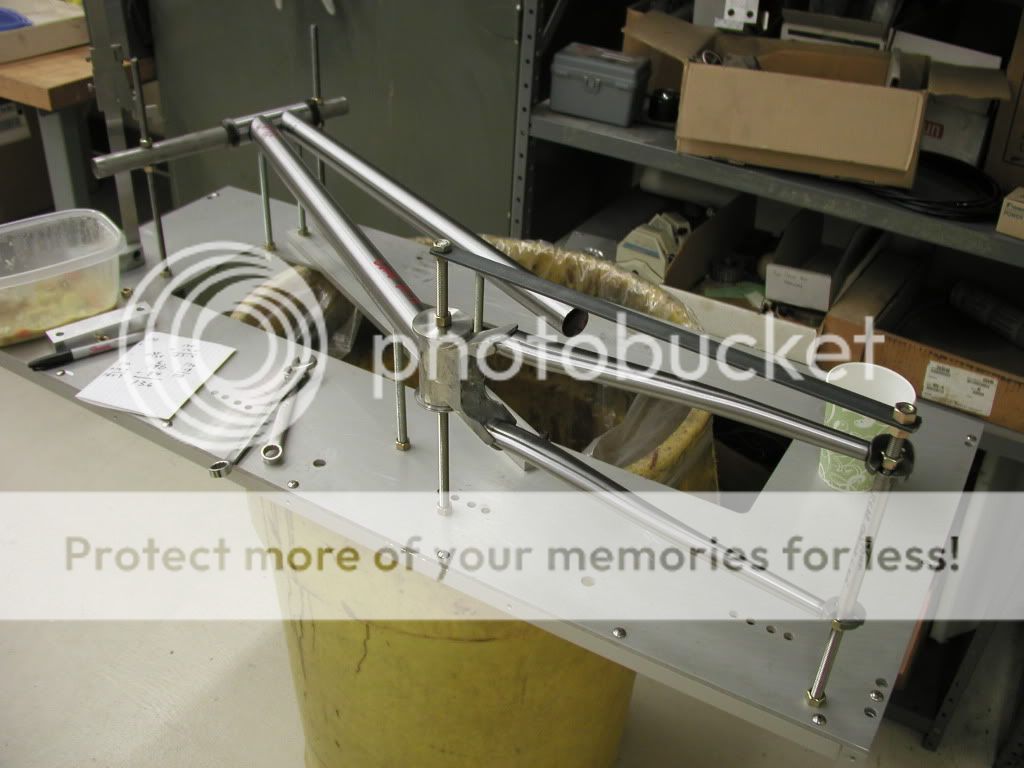

Made a jig, and cut all the tube to length..,



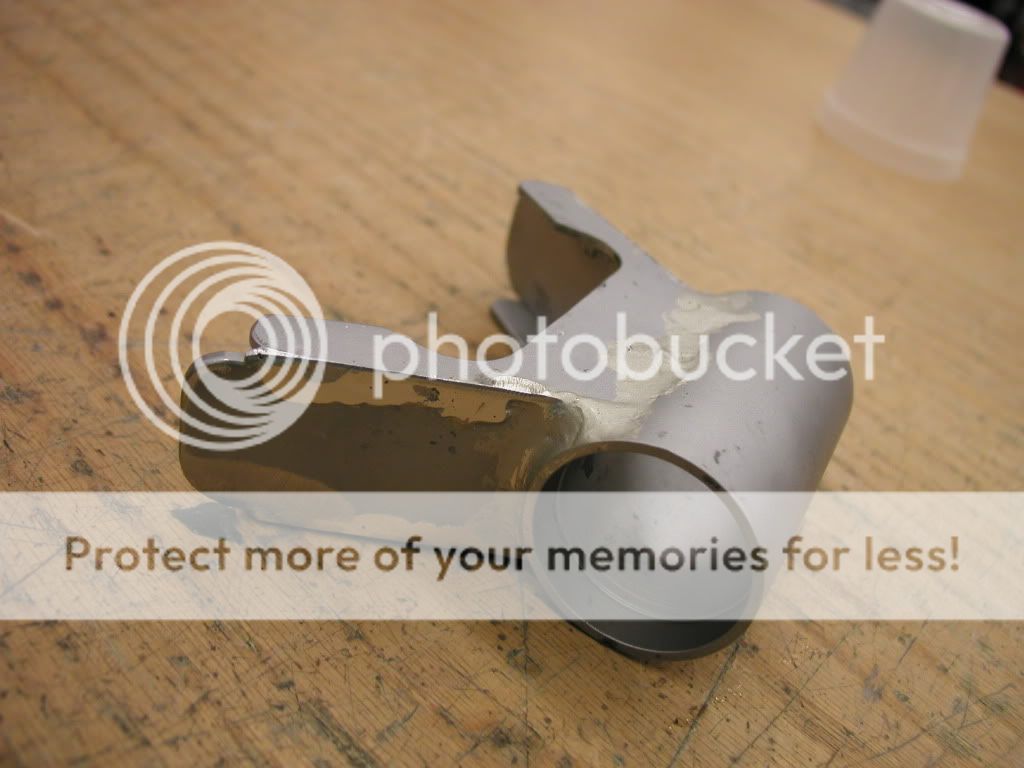

Press-fit BB for ECHO Ti, fabricated yoke...



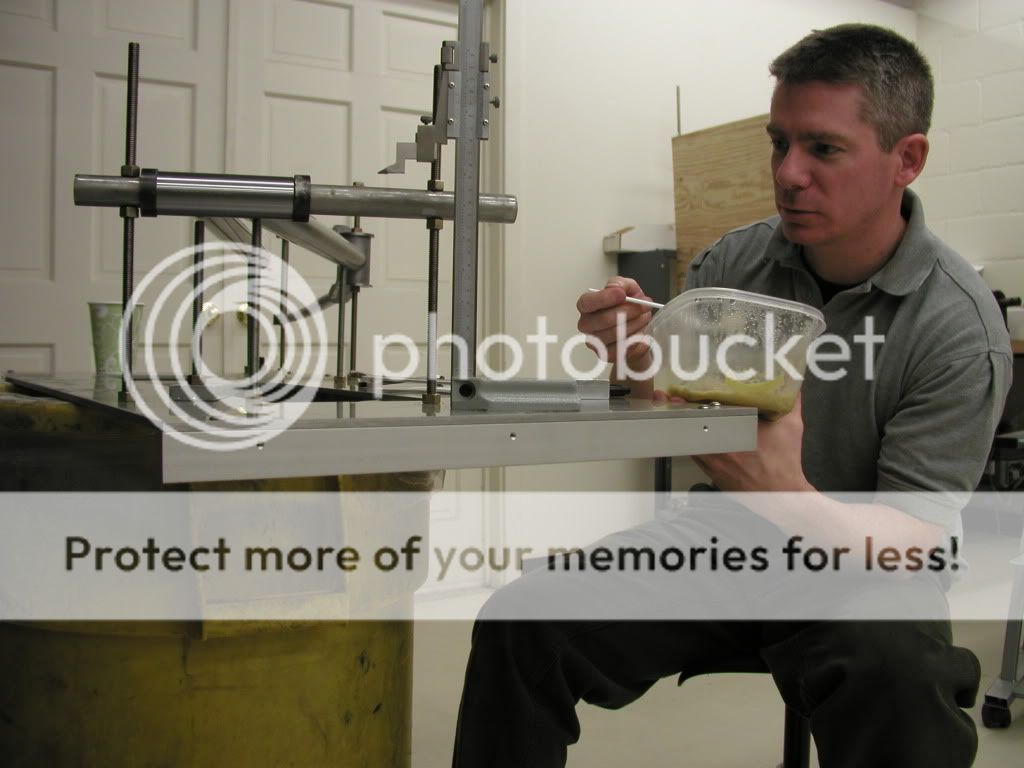

Worked on it during lunch...


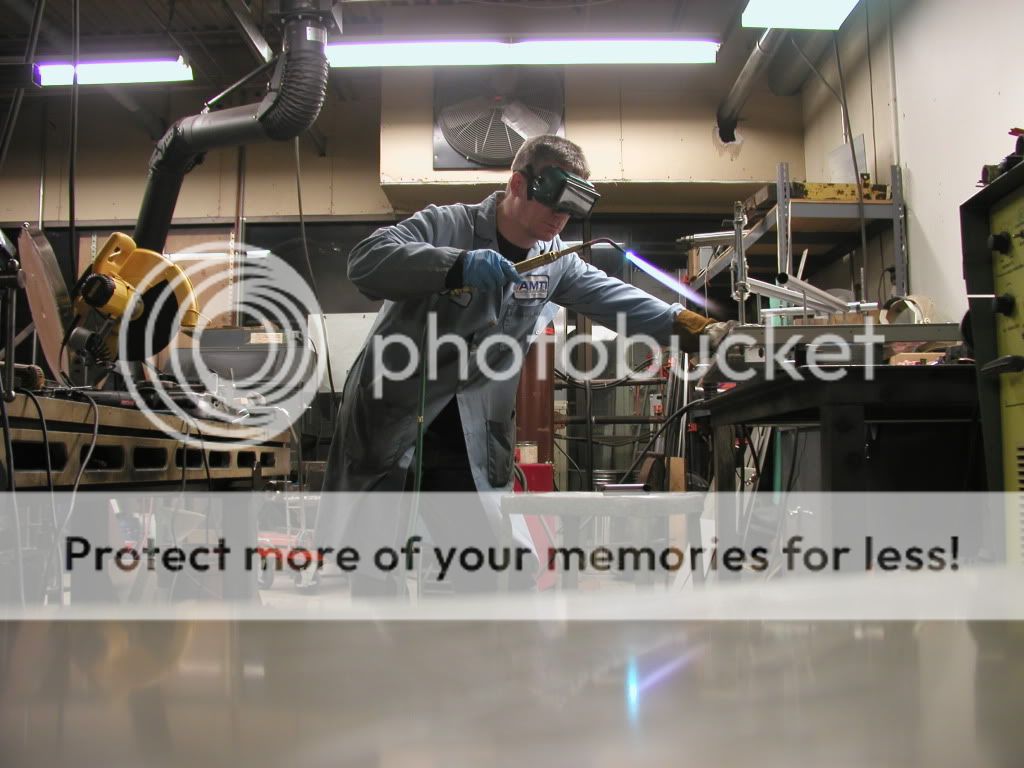

Brazed a few weeks ago...



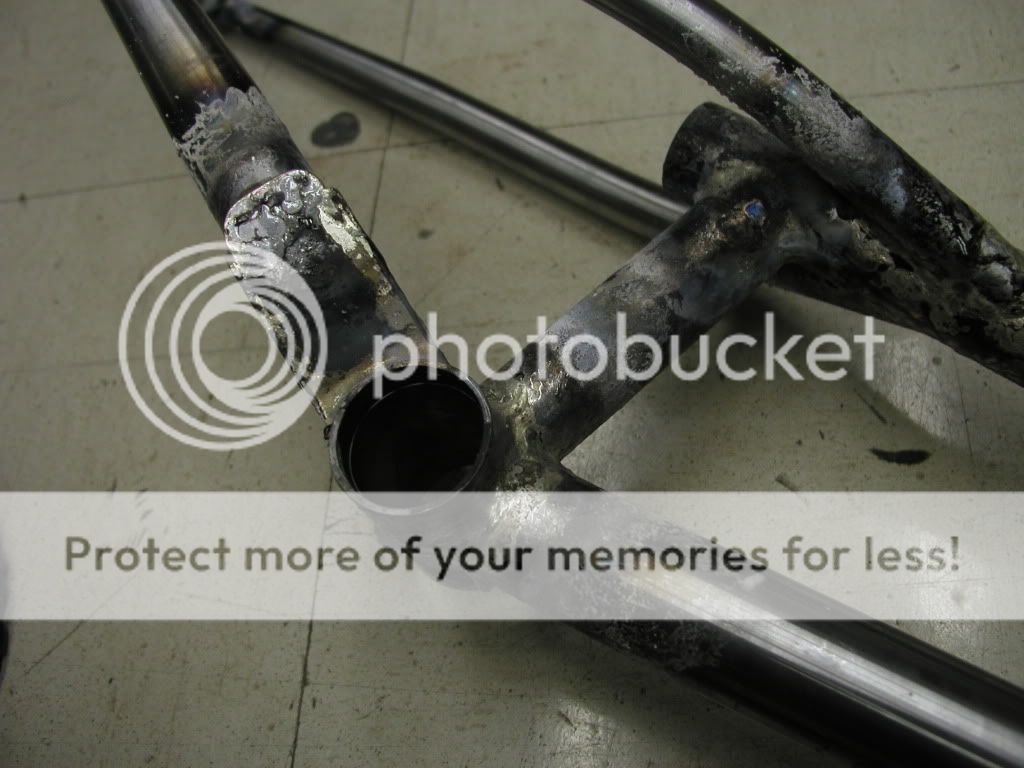

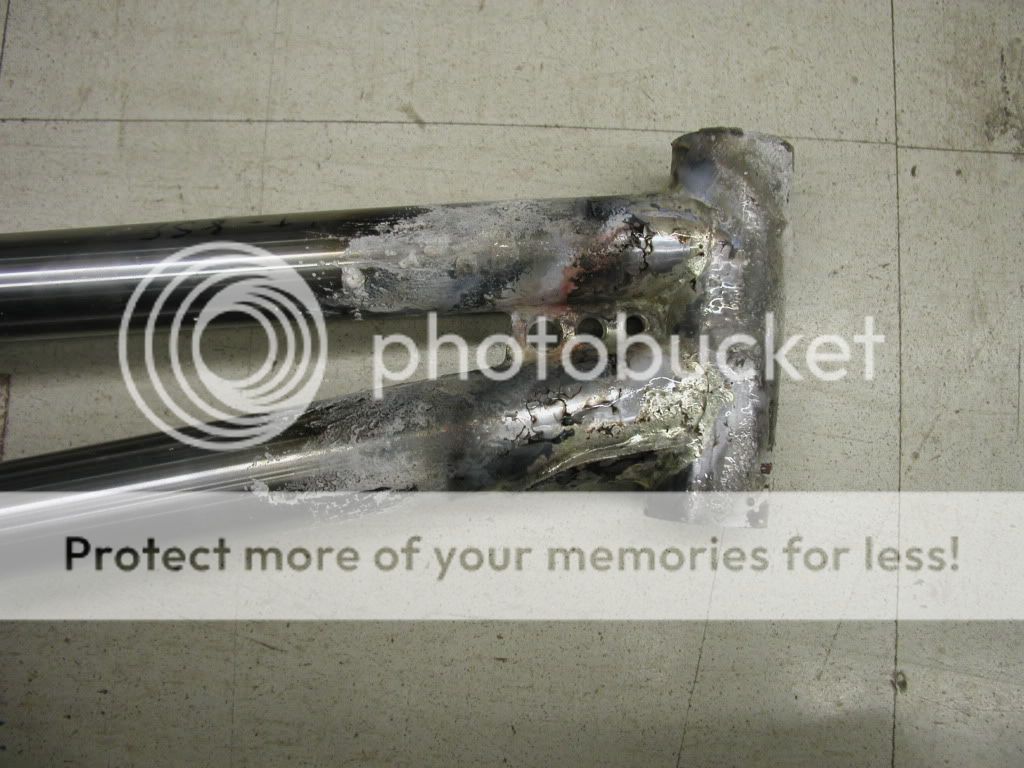

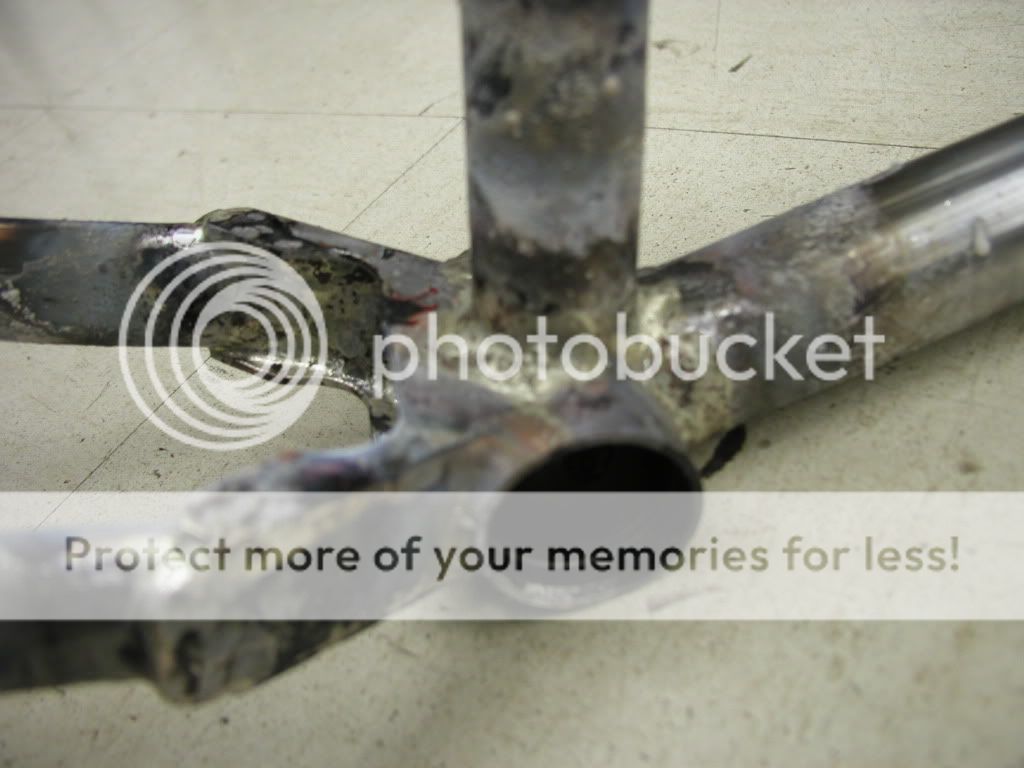

The flux makes it look like something pulled out of a house fire...





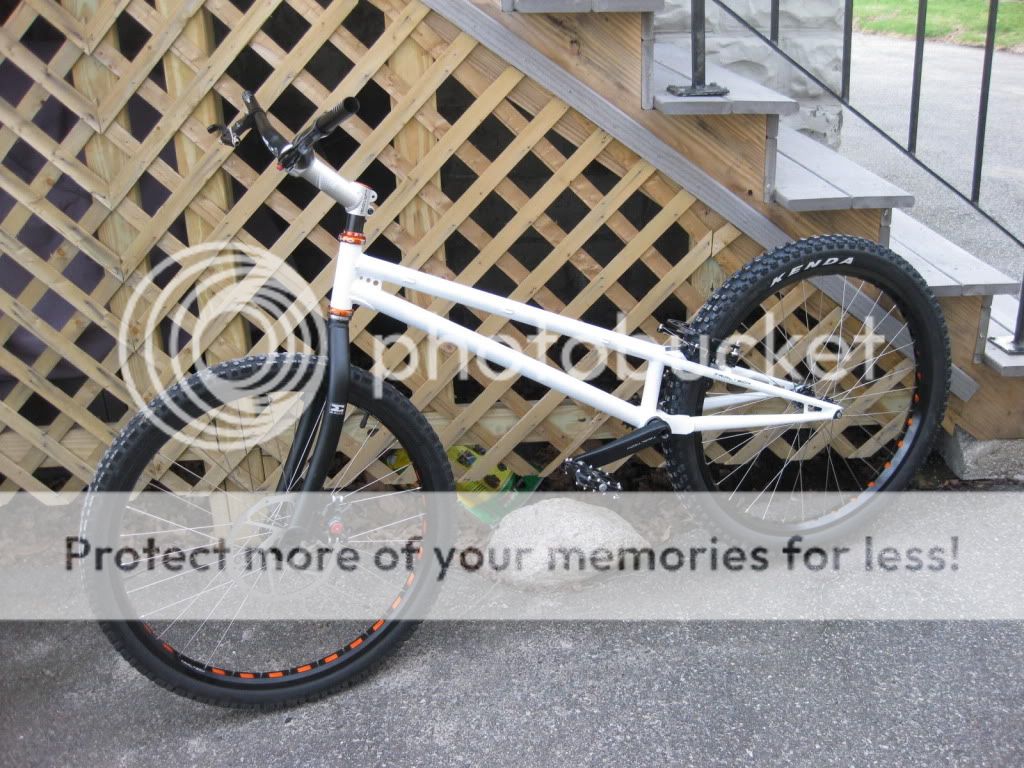

Glass bead blasted, then painted and put some parts on...





Geo 1070, 380, 35, 72HA
Frame Weight 4.2 lbs

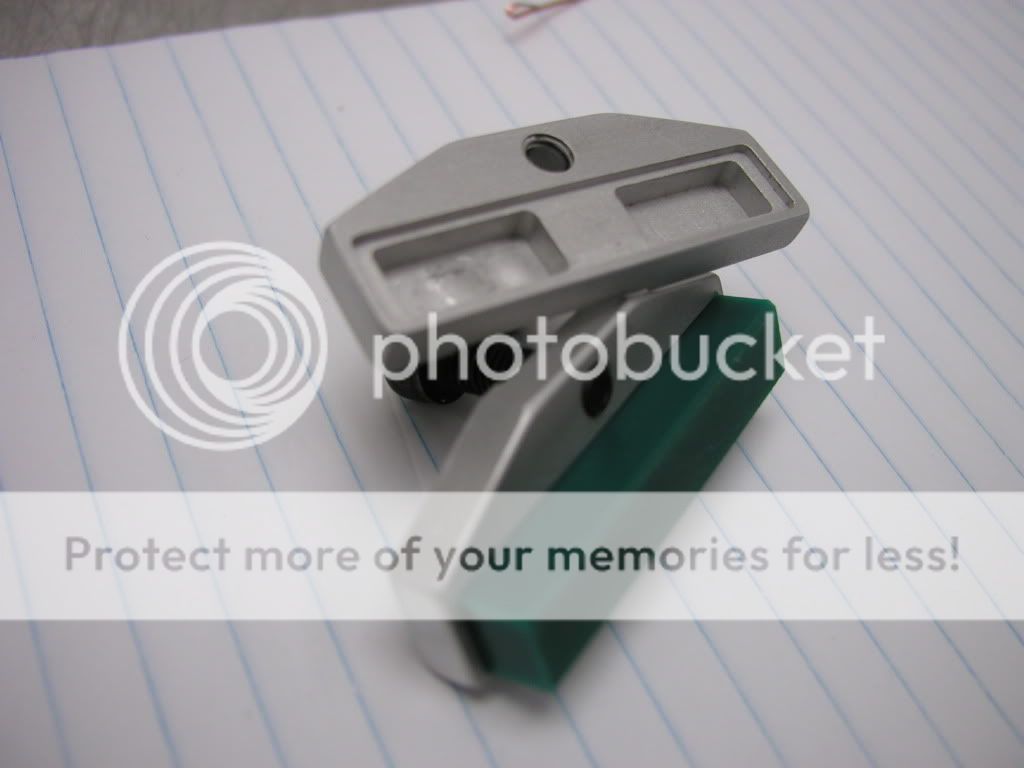

Also made my own V-brake LGM holders because of clearance problems, they had to be custom.



This has been slightly easier than my first attempt, because I bought the tubing kit with bent cs and ss.

So far so good, can't wait to ride!



__________________

I feel the sense of possibilities...
I feel the wrench of hard realities.
RUSH - Camera Eye

Alan4505 is offline

Reply With Quote Quick reply to this message
Old 04-14-2011, 07:23 PM   #2
TRD

TRD's Avatar

Join Date: Jan 2010
Mesa AZ
Posts: 1,830
Liked 20 Times on 20 Posts

Wow! That looks amazing!!



__________________
TRD is offline

Reply With Quote Quick reply to this message
Old 04-14-2011, 07:43 PM   #3
ShawNicholas

ShawNicholas's Avatar

Join Date: Apr 2011
Duluth MN
Posts: 14

That is so cool. I have always thought it would so fun to build custom bikes, get everything the way you want it. I'm sure it takes a lot of planning and skill. Nice Job!

__________________
ShawNicholas is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 05:34 AM   #4
cwtrials

cwtrials's Avatar

Join Date: Sep 2004
Manchester New Hampshire
Posts: 1,920
Liked 123 Times on 108 Posts
Likes Given: 162

holy DIY Frame Batman!

That looks freakin Sweet!

__________________
CWTRIALS-SHOP.COM - By Trials Riders, For Trials Riders
facebook.com/CwtrialsShop
cwtrials is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 07:41 AM   #5
CoppellStereo
Ruff Rider

CoppellStereo's Avatar

Join Date: Feb 2004
Rapid City SD
Posts: 2,387
Liked 7 Times on 7 Posts
Likes Given: 105

awesome! i would have left it unpainted, it looked pretty sweet raw!

__________________

____________
CoppellStereo

CoppellStereo is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 08:47 AM   #6
perkins

perkins's Avatar

Join Date: Jul 2006
Posts: 1,832
Liked 182 Times on 136 Posts
Likes Given: 5

Looks good, Alan! The weight came down a lot from the last one, didn't it? Is that pea soup?

__________________
perkins is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 10:00 AM   #7
Linz42

Linz42's Avatar

Join Date: Oct 2010
Sunshine Coast Queensland
Posts: 423
Liked 7 Times on 7 Posts
Likes Given: 4

That...is everything you could want in a frame, especially like the bb yoke and rear dropouts
A world apart from the last one, quantum improvement, looks tits in white!

__________________
Quote:
Originally Posted by afrobot View Post
Not only are they aesthetically wretched, but they leak too! Nice!
Linz42 is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 11:20 AM   #8
toyota200x
In the present moment

toyota200x's Avatar

Join Date: Oct 2004
Duluth, MN
Posts: 2,981
Liked 33 Times on 30 Posts

Love homemade frames & parts. That bike looks great but we need a complete shot from the side.

Were you not able to get the pads far enough down in the arms?

Keep fabricating & updating us.

__________________

I love V brakes

toyota200x is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 04:32 PM   #9
pkb4112
mOd N0ob

pkb4112's Avatar
Bikes

Join Date: Jan 2011
Killingworth CT
Posts: 669
Liked 49 Times on 45 Posts
Likes Given: 6

Wow that looks awesome. Great job.

__________________
pkb4112 is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 06:24 PM   #10
Alan4505
Engineer the future NOW.

Alan4505's Avatar

Join Date: Jan 2010
Boston MA
Posts: 309
Liked 15 Times on 12 Posts

Here's a side view.


I just finished the brakes and drivetrain today. Almost done. Hopped around in the driveway a bit. Very stable on the rear.

You guys have any suggestions on the stem height? I am a short dude (5'6") and find the high setup very comfortable. Does it just look dorky? I did put proper spacers in today.

Thanks for the comments.

__________________

I feel the sense of possibilities...
I feel the wrench of hard realities.
RUSH - Camera Eye

Alan4505 is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 06:31 PM   #11
Alan4505
Engineer the future NOW.

Alan4505's Avatar

Join Date: Jan 2010
Boston MA
Posts: 309
Liked 15 Times on 12 Posts

Oh, my first problem with with brakes was that I was determined to use that booster. It has a max separation of 93mm. I would have liked 100mm. And second, I put the vee posts 10.25" from the axle. Should have been more like 10" even.

__________________

I feel the sense of possibilities...
I feel the wrench of hard realities.
RUSH - Camera Eye

Alan4505 is offline

Reply With Quote Quick reply to this message
Old 04-15-2011, 07:45 PM   #12
Joe Janicki
CWTRIALS.com

Joe Janicki's Avatar
Bikes

Join Date: Jun 2004
New Haven CT
Posts: 510
Liked 14 Times on 11 Posts
Likes Given: 47

Those pad backing look awesome... i could have sooooo used those when I rode this fabricated ti mod back in the day with the brake posts just a bit off... great idea! why move the posts when you can just make backings with an inch offset lol

For the bar set up I would get a slightly longer and higher stem 135mm maybe, take a few spacers out from under the stem and cut the steerer accordingly, keep your bars they look really nice, and tilt them back towards you just the tiniest smidgen to keep the height. This will give you the room in the cockpit you are looking for with the stem nice and low out of the way for hooks and tucking. This is what all the elite riders use pretty much. Obviously buying a new stem and cutting your steerer tube might be a little unnecessary when the setup you have now might be more comfortable as you mentioned. But you did ask so... lol.

Amazingly nice looking with that white paint. Love the look of those newer frame dimensions with the old-skool thinner tubing. Very cool bike!

__________________

Last edited by Joe Janicki; 04-15-2011 at 07:47 PM. Reason: I'm dumb sometimes
Joe Janicki is offline

Reply With Quote Quick reply to this message
Old 04-17-2011, 09:35 AM   #13
stickyworm

stickyworm's Avatar

Join Date: Jul 2006
Pickering Ontario
Posts: 730
Liked 1 Times on 1 Posts
Likes Given: 3

What a beaut. Looks like a fun ride.

__________________
UCI World Championship of Trials Mont Sainte Anne Photo Special
stickyworm is offline

Reply With Quote Quick reply to this message
Old 04-17-2011, 11:43 AM   #14
eaterofdog
Two dollars... cash

eaterofdog's Avatar
Bikes

Join Date: Jan 2010
FL
Posts: 2,411
Liked 168 Times on 134 Posts
Likes Given: 37

Damn that's brazy!

__________________

I'm a man of simple tastes.

eaterofdog is offline

Reply With Quote Quick reply to this message
Old 04-17-2011, 12:02 PM   #15
treewizzard
draquella is back!

treewizzard's Avatar

Join Date: Jan 2010
austin, texas
Posts: 4,187
Liked 313 Times on 260 Posts
Likes Given: 354

how well does brazing work like that? i thought you had to use lugs for a bike frame.

__________________

i love to LOL and i love gettin my puci ate

Quote:
Originally Posted by yyrtjp View Post
2%4 D*"#uD A*e , P*kr*4)(k, LA , h-~20
treewizzard is offline

Reply With Quote Quick reply to this message
Old 04-18-2011, 09:58 AM   #16
kwinters

kwinters's Avatar

Join Date: Mar 2010
Van Buren Arkansas
Posts: 243
Liked 1 Times on 1 Posts
Likes Given: 17

Let's see a video man

__________________
kwinters is offline

Reply With Quote Quick reply to this message
Old 04-18-2011, 08:50 PM   #17
Alan4505
Engineer the future NOW.

Alan4505's Avatar

Join Date: Jan 2010
Boston MA
Posts: 309
Liked 15 Times on 12 Posts

My brazing is with Nickle-Silver wire ( which actually has no silver in it ). It is nearly as strong as steel and with some careful torch control you can build it up to make a nice fillet, like welding.

The stuff most bike builders use with a lugged frame melts at a much lower temp is commonly called silver-solder. It is very runny and does not build up well.

And, my lunch was Tandori Chicken, not pea soup.

Now, If I could only tap, gap or sidehop, I'd make a video...

__________________

I feel the sense of possibilities...
I feel the wrench of hard realities.
RUSH - Camera Eye

Alan4505 is offline

Reply With Quote Quick reply to this message
Old 04-18-2011, 10:46 PM   #18
tooold4this
but in denial

Join Date: Jan 2010
Nathrop, CO (near Salida) CO
Posts: 399
Liked 9 Times on 9 Posts

very nice. I was quite proud of myself for making a custom booster! I would think that would feel real good riding on a whole bike you made.

__________________
tooold4this is offline

Reply With Quote Quick reply to this message
Old 04-23-2011, 06:45 AM   #19
Alan4505
Engineer the future NOW.

Alan4505's Avatar

Join Date: Jan 2010
Boston MA
Posts: 309
Liked 15 Times on 12 Posts

OK. Finally done.





DIY Bashring

__________________

I feel the sense of possibilities...
I feel the wrench of hard realities.
RUSH - Camera Eye

Alan4505 is offline

Reply With Quote Quick reply to this message
Old 04-23-2011, 07:24 AM   #20
perkins

perkins's Avatar

Join Date: Jul 2006
Posts: 1,832
Liked 182 Times on 136 Posts
Likes Given: 5

That looks great, Alan! That bashring looks amazing!
